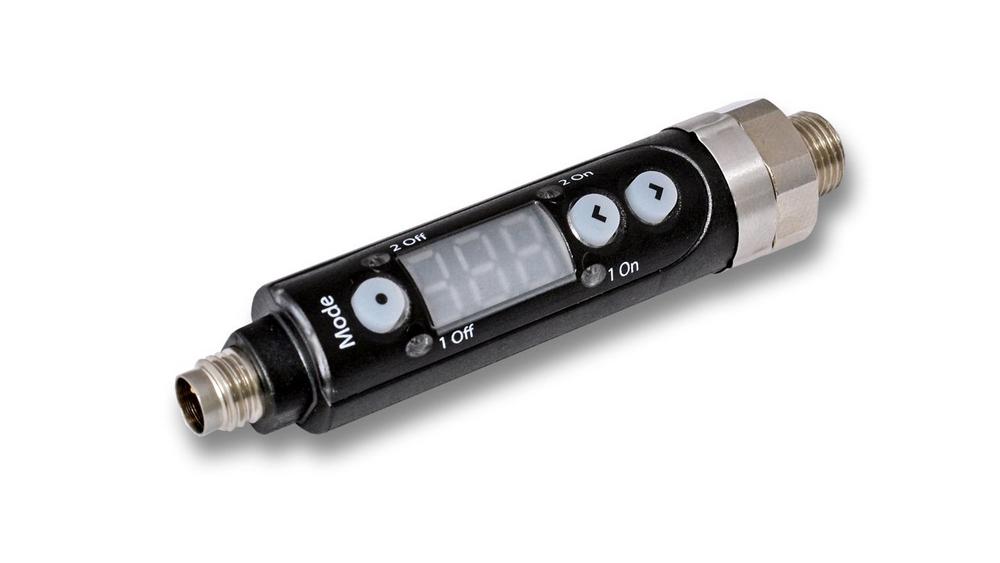

In addition to various applications in pneumatics and packaging technology, the PICO fits for monitoring vacuum lifters. Considerable energy savings are made through the pressure-dependent control of the vacuum generators by adjustable hysteresis (separately parameterizable reset point). The very slim design and its low weight make the PICO ideal for monitoring end-of-arm tools on production robots.

In addition to central control via IO-Link, the parameters can also be quickly and easily adjusted to the respective application via buttons and display. The rotatable display provides immediate feedback on the control variable. In addition, the sensors can also be subsequently integrated into a manufacturer-independent industry 4.0-compliant sensor network via an IO-Link-compatible output. A central warning system (predictive maintenance) can thus be easily implemented, and operations and programming can be done remotely. Even without direct access to the plant, it can be monitored.

Relative pressures from -1 to 12 bar are connected via the G1/8" external thread (optionally NPT 1/8"), the electrical connection is made via an M12 or M8 plug, which also supplies the supply voltage of 10..30 V. Due to a 250 mA load capacity each of the outputs can switch many valves directly without relay stages.

With its display and key operation on the one hand and its IO-Link capability on the other, AMSYS offers with the PICO a pressure switch that combines both simple handling on site and sustainability for an integration in future viable networks.
