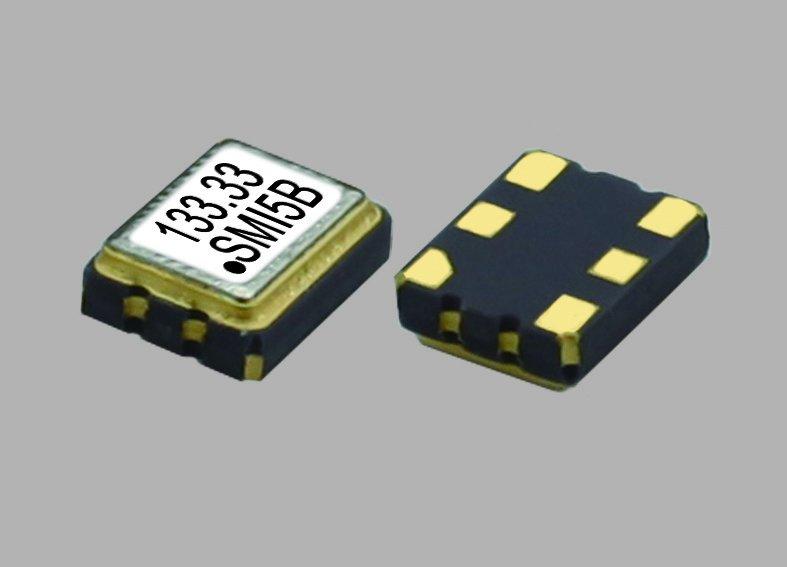

Endrich Bauelemente Vertriebs GmbH introduce a new product family of Crystal based clock oscillators from SMI INC. These generation of differential oscillators, with excellent frequency stability over temperature and ultra low Phase noise performance are designed for high data rate applications as 5G (high speed and wide broadband communication), Ethernet, GbE, Synchronous Ethernet, FBGA’s. The small design down to 2.5 x 2.0 mm fulfil the market requirements of differential clock generators in a tiny package. This allows additional functions to be integrated and development time to be greatly reduced. The components have very low power consumption. In addition the oscillator can be set in “standby-mode” to reduce the current consumption down to 30µA max. SMI support 7 standard network frequencies from 100 MHz to 321.5000 MHz. The clock oscillator has best in class RMS jitter performance (12kHz to 20MHz) of 43 fs (typ.)@ 156.25MHz (LCPECL) and just 43 fs (typ.)@ 200MHz (LVDS). It can be operated in the extended temperature range from -55 °C to +125 °C and offers output for LVPECL, LVDS.

Find more information at www.endrich.com and https://www.endrich.com/oszillatoren/22smo-lvp_lvd_standard_frequency
