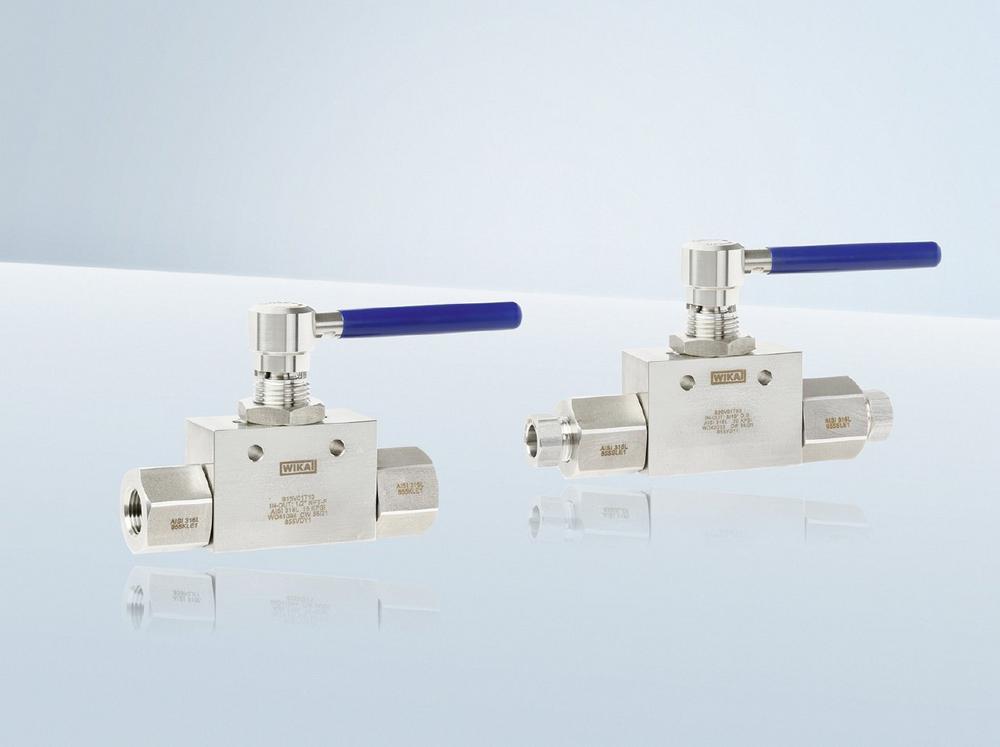

The model HPBV is available with various bores and enables bidirectional flow. Its robust design, with floating ball, blow-out proof valve spindle and high-quality PTFE sealing packing, offers maximum safety and a long service life for the instrument. A valve seat made of PEEK withstands chemicals, heat and wear.
Two connection types are available for the new valve: NPT and cone/thread (for nominal pressure 20,000 psi/1,379 bar). Operation is smooth, even under high loads – the ball valve can be closed and opened with just a quarter turn. In addition to the standard version, there is an optional oil- and grease-free variant for oxygen applications in accordance with ASTM G93 Level C.
For the model HPBV, WIKA offers an application-specific assembly with a high-pressure gauge. Such an instrument hook-up is delivered ready-to-install and leak tested.
As a family-run business acting globally, with over 10,200 highly qualified employees, the WIKA group of companies is a worldwide leader in pressure and temperature measurement. The company also sets the standard in the measurement of level and flow, and in calibration technology. Founded in 1946, WIKA is today a strong and reliable partner for all the requirements of industrial measurement technology, thanks to a broad portfolio of high-precision instruments and comprehensive services.
With manufacturing locations around the globe, WIKA ensures flexibility and the highest delivery performance. Every year, over 50 million quality products, both standard and customer-specific solutions, are delivered in batches of 1 to over 10,000 units. With numerous wholly-owned subsidiaries and partners, WIKA competently and reliably supports its customers worldwide. Our experienced engineers and sales experts are your competent and dependable contacts locally.
