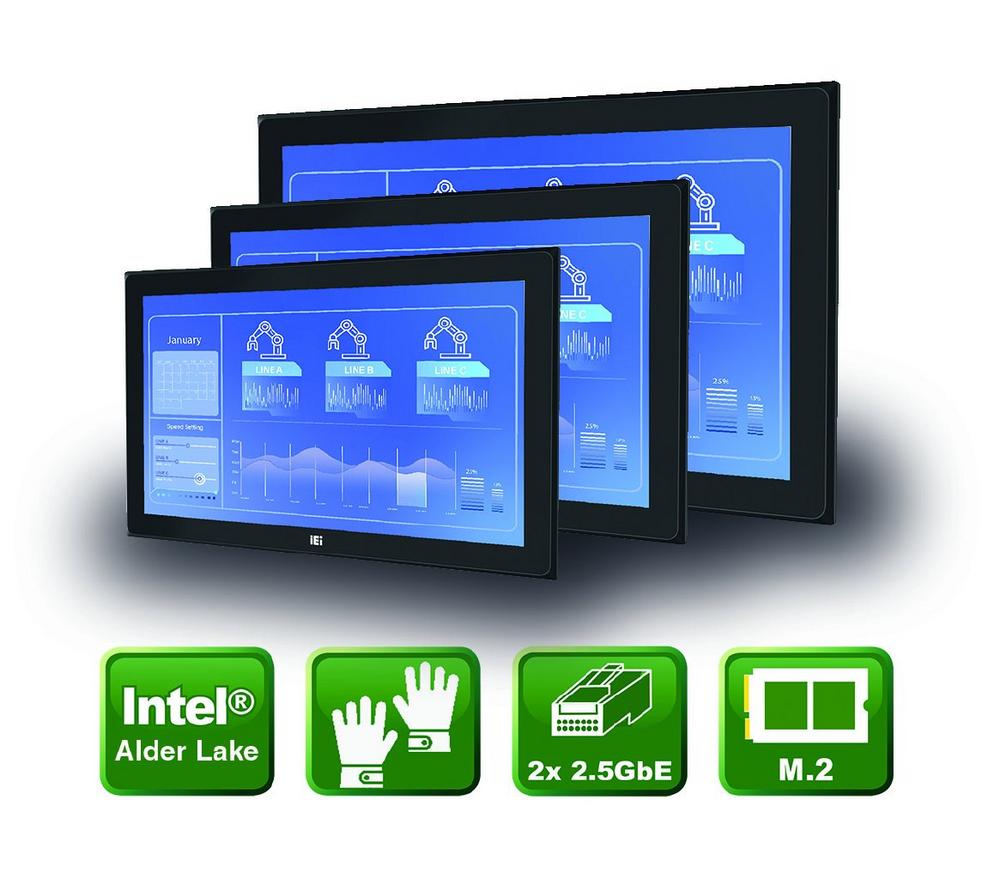

The PPC2-ADLP series is the most powerful panel PC series of the PPC2 range in ICP Germany’s portfolio. The PPC2-ADLP series is available in 4:3 display format in sizes of 10.4", 12.1", 15", 17", 19" and in 16:9 format in 13.3", 15.6", 18.5" and 21.5". The PCAP touch screen supports wet and gloved operation and has an anti-reflective coating and UV protection. The Alder Lake i3-1220P processor, with 10 cores and 12 threads, a base clock of 1.50 GHz and a turbo frequency of 4.4 GHz, offers appealing performance for challenging applications. The i5-1250P and i7-1260P each offer 12 processor cores and 16 threads, the i5-1250P clocks at a maximum of 4.40 GHz, the i7-1260P even at 4.70 GHz. The Alder Lake processor generation was specially developed for IoT edge devices and offers functions for IoT, real-time performance and functional security, among other things. 8GB DDR4 memory is pre-installed in the dual channel slot. Storage media can be installed via the M.2 slot with M Key can be installed. M.2 2242/ with M Key, , M.2 2280 M Key, M.2 2230 with E Key, HDMI, Dual 2.5 GbE, two USB 3.2 Gen2 (10Gb/s), USB 2.0, two RS-232/422/485, RS-232, are available for connecting additional peripherals and add-on cards. The PPC2-ADLP series can be operated with 12 to 24 VDC voltage in a temperature range of -10 °C to 50 °C. On request, ICP Germany can supply the PPC2-ADLP as a ready-to-use system with industrial storage medium and operating system, and a wall mount kit, stand or arm mount can also be selected.

Specifications

• Intel® Core™ i7/i5/i3 processor
• 8GB DDR4 dual-channel LP memory
• HDMI, USB3.2, USB, RS-232/422/485
• 2x 2.5 GbE
• 10-point touchscreen with anti-reflective coating and UV protection
• Wet and glove touch operation
• 2 2242 M key, M.2 2280 M key, M.2 2230 E key slot

Applications

• Automation
• HMI operating systems
• Building automation
• KIOSK systems
• Infotainment systems
• POS systems
• Display systems
• Info terminals
• Self-Service Terminal
• Automation Controller
• Embedded Device Dashboard
• Input device for production lines
