Scalable Integrated Multi-Axis System from PI: High Precision, Short Lead Times, Ready to Deploy
In industrial environments where automation and short development cycles are in demand, motion systems must deliver high precision and be quickly deployable while offering scalable flexibility. Physik Instrumente (PI), a global leader in high-precision positioning technology and piezo applications, addresses this demand with the X-417 integrated multi-axis system: a high-performance motion platform designed for advanced industrial applications. Based on a standardized and configurable architecture, the system is available in multiple expansion stages and comes fully preconfigured and tuned—from entry-level to high-end setups. PI supports fast deployment needs with short lead times across all three performance classes.

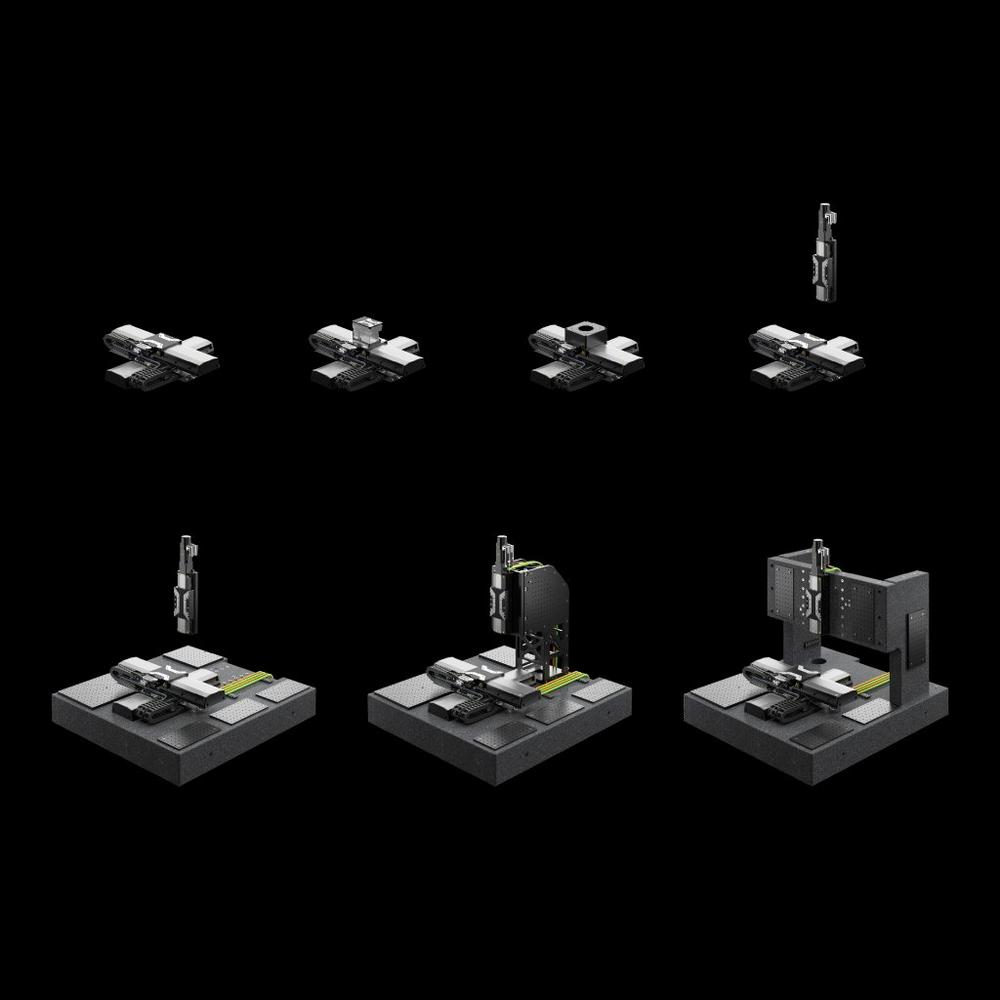

At its core, the X-417 is a high-load XY system built on precision linear stages, offering travel ranges from 102 mm to 407 mm. Depending on space and process requirements, a Z axis can be integrated to create a fully configured three-axis system, either mounted directly on the XY platform or supported by a dedicated bracket. Alternatively, a precision rotation stage can be used as Z axis for applications requiring rotational positioning. The system is easy to set up, minimizing integration effort and time to operation. Support for functional safety enables deployment in environments with elevated safety standards, including automated production lines and laser applications.
Three Performance Classes for Precision and Throughput
To meet varying precision and throughput requirements, PI offers the X-417 system in three preconfigured performance classes. Each variant features precisely aligned components and includes the G-901 ACS high-performance controller with comprehensive software support. The system can be extended with granite base plates and aluminum or granite axis brackets.
High-Performance Motion Control and Easy Integration
The X-417 platform delivers exceptional contouring performance, enhanced by ServoBoost™ technology. It provides increased throughput and precision, making it ideal for demanding motion tasks. Powered by the ACS motion controller, the system supports PLC environments and EtherCAT communication, as well as easy laser integration. Comprehensive measurement and mapping data support process stability and precision.
Application Versatility for Advanced Manufacturing
The X-417 system is engineered for high-precision tasks, including laser micromachining (drilling, cutting, and structuring), ultrashort pulse laser processing, and electronics manufacturing. The system also enables Galvo scanner integration. Further use cases range from inspection and test systems to the precise processing of ceramics, glass, and diamond.
Ready to Run: Fast Deployment and Expert Support
Each X-417 system is delivered fully preconfigured with cabling, alignment, adjustments, calibration, and detailed test reports to ensure immediate and reliable performance. PI provides on-site engineering and application support to tailor the system to individual technical requirements. Thanks to short lead times across all configurations, companies benefit from faster project timelines: whether they need high-precision, complex machining, or cost-efficient production solutions.
Über die Physik Instrumente (PI) GmbH & Co. KG
PI with headquarters in Karlsruhe, Germany, is the market and technology leader for high-precision positioning technology and piezo applications in the market segments of Industrial Automation, Photonics, Semiconductor, and Microscopy & Life Sciences. Working closely with customers around the world, PI’s more than 1,900 specialists have been continuously pushing the boundaries of what is technically feasible for more than fifty years. Various drive technologies, internally developed sensor technology, electronics, and control technology provide the basis for this. PI’s portfolio ranges from components to subsystems to tailor-made complete solutions. More than 560 granted and pending patents underline the company’s claim to leadership in the fields of precision positioning and piezo technology. PI operates on a global scale, with nine production sites in Europe, North America, and Asia, as well as sixteen sales and service subsidiaries.
