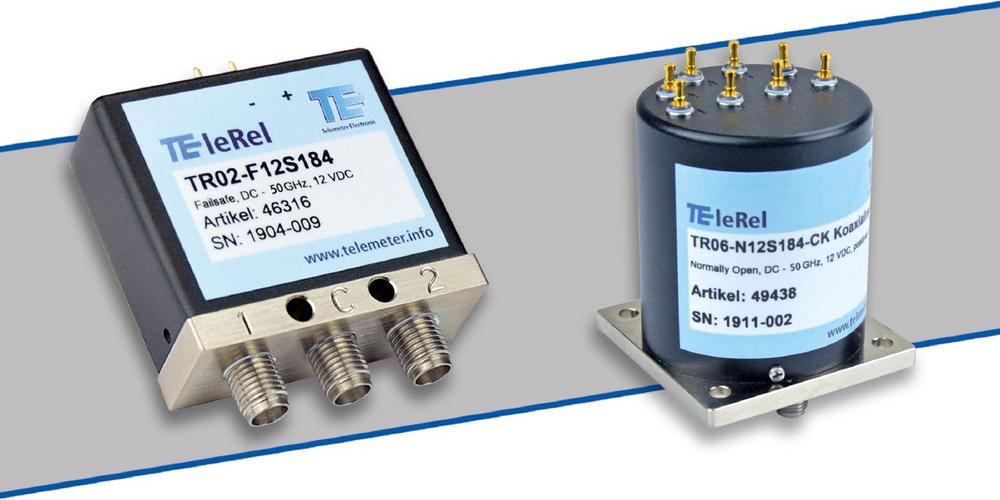

The development started with the TR 02 series (SPDT switch) in the standard configuration, which can be used now in a wide frequency range from DC – 50 GHz. As a new additionally selectable configuration, an internal termination can be offered. Furthermore, Telemeter Electronic has also extended the frequency range of the TR03-TR06 series (SP3T up to SP6T) also up to 50 GHz. This series offers from 3 up to 6 switching positions using a 2,4mm connector for performance-optimized connection. A high signal quality is guaranteed by a low insertion-loss (depending on the model, max. 1,2 dB) as well as a high isolation.

The guaranteed lifetime of 1 million switching cycles ensures highest reliability even in safety-critical applications. As an option, up to 5 million guaranteed switching cycles are also available. As with all RF switches from Telemeter Electronic, numerous additional options, such as latching functionality or TTL drivers, an extended temperature range or moisture protection can be selected as an added option.
