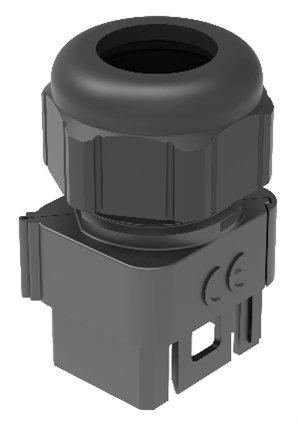

Typical applications for the Han^® 1A include three-phase drives in mechanical engineering. Cables with thicker insulation are also used in the railway sector. With the Size 2 cable adapter, the Han^® 1A becomes a viable option for both sectors. HARTING has developed the adapter for integrating cables with a larger outer diameter into the Han^® 1A design. Therefore, even conductors with diameters of 10 to 13 mm can now be used in what is currently the smallest Han^® connector. The adapter consists of a seal and a pressure nut and is fully compatible with all existing Han^® 1A contact inserts. The hinged design ensures the seamless integration of different cable diameters.

Han^® 1A Drive – compact screw-mounted housing

Further innovations improve installation efficiency. Thanks to its dimensions and modular design, the Han^® 1A series is particularly suitable for connecting sensors, drives, door systems and lighting. A screw-mounted housing is now available specifically for compact motors/drives and control cabinet applications, which can be installed with virtually no tools. The angled housing is e.g. fed through an M20 through-hole in a motor terminal box or a control cabinet – and secured quickly and easily with an M20 lock nut. The new housing is compatible with all inserts in the Han^® 1A series.

Benefits

Cable Entry Size 2

• Suitable for cable assemblies with a cable cross-section of up to 13 mm (previously 10 mm)
• Compatible with all inserts in the Han^® 1A series
• Up to 30% higher current transmission thanks to larger cable cross-sections

Han^® 1A Drive

• Einfache Durchführungen für Schalt- und Steuerschränke z.B. auf Basis von M20-Cutouts
• Nahezu werkzeugfreie Montage im Vergleich zu bisherigen, mit Schrauben befestigten gewinkelten Anbaugehäusen
• Kompatibel mit allen Einsätzen der Han^® 1A Baureihe
